Odyssey 72″ x 24″ Music Festival DJ Table with 4-Leg Kit

ATT-PRO-7224
UPC: 807822409321

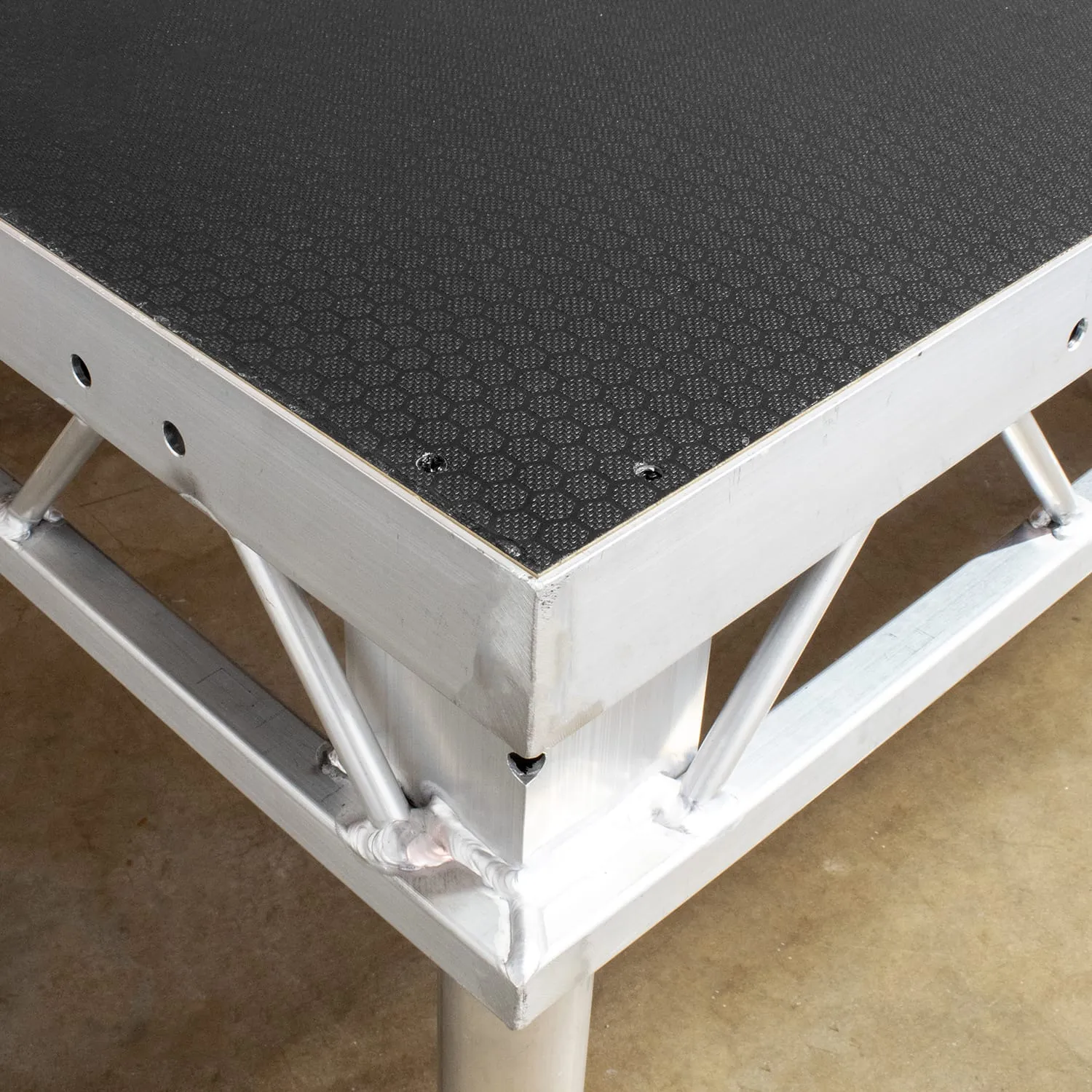

• Tabletop measures approximately 72″ x 24″ x 6.75″
• Table height ranges approximately from 31″ to 48″
• The ATT-PRO tables can be joined together on any of the four sides to form a bigger working area.
• Table legs measure 22.5″ in length.

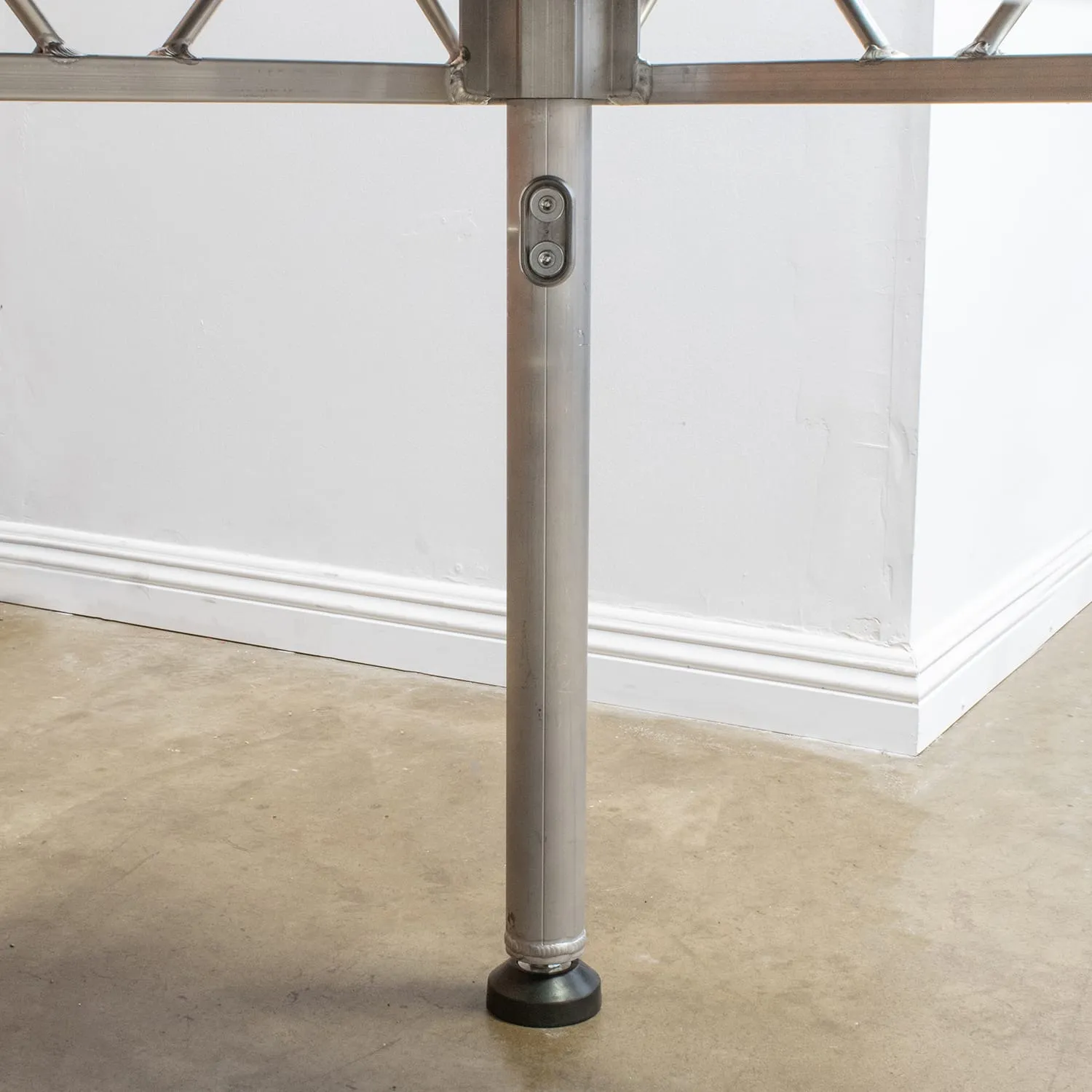

• Table height can be adjusted via the height adjustable feet.

Available in various other sizes.
96″ x 36″ (ATT-PRO-9636)
96″ x 24″ (ATT-PRO-9624)
72″ x 24″ (ATT-PRO-7224)
48″ x 36″ (ATT-PRO-4836)
48″ x 24″ (ATT-PRO-4824)

Odyssey Pro DJ Table – Setup & Breakdown instructions

Setup Procedure

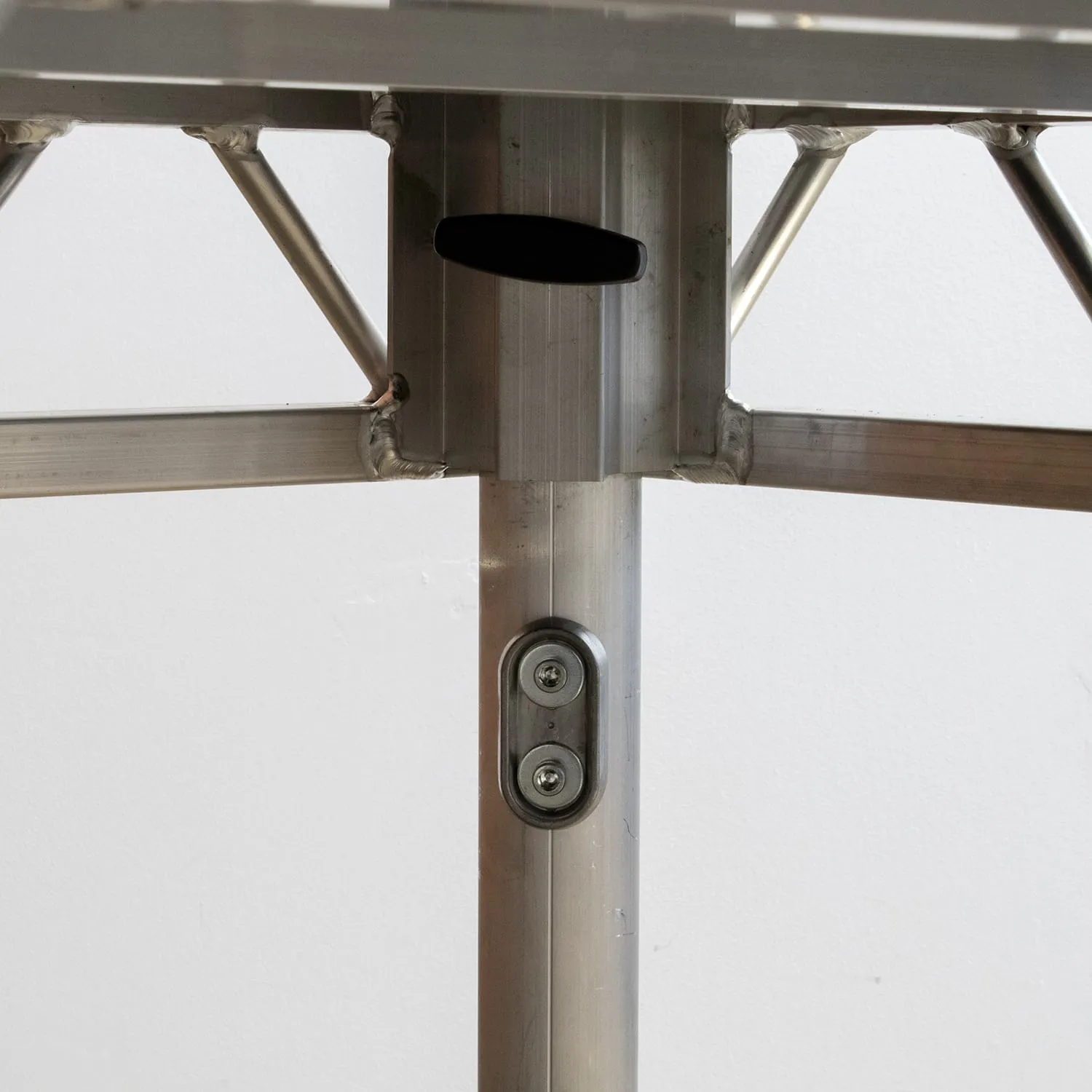

First step, set all four risers to the desired height, tighten both Allen bolts on each riser to ensure proper security and stability.

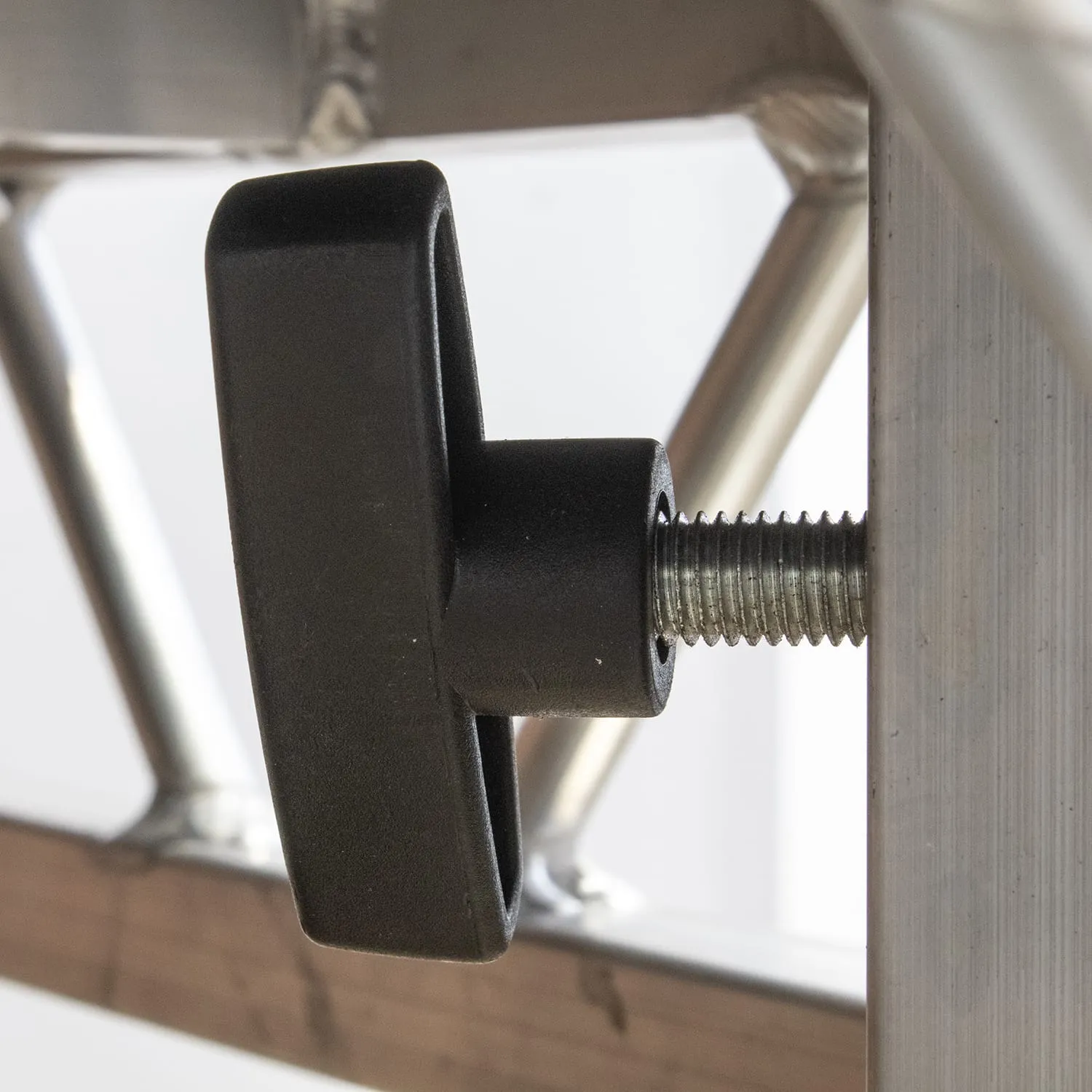

Have one or more qualify person(s) tilt and hold the DJ table securely on its longest side while the riser installation person(s) inserts each riser fully into the DJ table socket (pressure clamping jaw must be 100% in contact with the riser’s rounded tube surface) ensure each riser is fully inserted, tighten each socket hand knob until snug and give an additional 1/4 turn, then pull on each riser to confirm it is tight and secure.
Carefully tilt the DJ table back upright and adjust the built-in leveling feet as needed to ensure the DJ table is level and stable.

Breakdown / Tear-Down Procedure
Tilt the DJ table onto its longest side and have a qualified person(s) hold the DJ table securely.
Loosen each riser’s hand knob and remove the risers one at a time, starting from top to bottom.
After the risers are completely removed from the Pro DJ table sockets, you may now retract each riser to the desired length.

Important Safety Warning
If any Allen bolt is loosened while the DJ table top is still mounted, the weight of the tabletop can drop suddenly and may cause bodily injury.
Always inspect all fasteners to ensure all are in good condition, none missing and all are tighten and secured prior to operation. Never operate the DJ table with loose risers, missing fasteners or unsecured hand knobs.
Use appropriate number of qualified personnel required for safely setup and breakdown procedures.
Do not lower any risers at any time while the tabletop is installed. If riser height adjustment is required, tilt the DJ table onto its longest side, have a qualified person(s) hold the DJ table securely while another person(s) adjusts the risers to the desired height, tighten both Allen bolts on each riser, then pull on each riser to confirm it is tight and secure. Carefully tilt the DJ table back upright and adjust the built-in leveling feet as needed to ensure the DJ table is level and stable. Failure to follow this safety notice may cause serious bodily injury.
If a riser is lowered while the DJ tabletop is still mounted, the weight of the tabletop can drop suddenly and may cause bodily injury.
Set up and tear down by qualified staging and rigging professionals only.
